If you’re looking for a family travel trailer, Bunkhouse style, you may find yourself looking at the Jayco Jay Flight 28BHBE and the Keystone Passport 292BH. Both are front-bedroom, rear-bunkhouse trailers built for families who want their kids in a separate space from the adults but they take slightly different approaches to weight, storage, and layout.
If you’re a family of five trying to decide between them, here’s how they actually compare, not just on paper, but in the ways that matter once you’re loaded up and towing.
Side-by-Side Specs
| Spec | Jayco Jay Flight 28BHBE | Keystone Passport 292BH |
| Exterior Length | 33′ 5″–33′ 7″ (model-year dependent) | 32′ 4″ |
| Exterior Height | 10′ 9″–11′ 2″ | 10′ 8″ |
| Dry Weight (UVW) | ~6,640 lbs | ~5,743 lbs |
| GVWR | 9,250 lbs | ~7,200 lbs* |
| Hitch Weight | ~680 lbs | ~755 lbs |
| Cargo Carrying Capacity | ~2,610 lbs | ~1,457 lbs |
| Fresh Water | 76 gal | 43 gal |
| Gray Water | 39 gal | 30 gal |
| Black Water | 39 gal | 30 gal |
| Slideouts | 1 | 1 |
| Sleeping Capacity | Up to 10 | Up to 10 |
| Bunk Style | Double-over-double fixed bunks | Quad bunks (two top, two bottom) |
| Awning | 18′ | 15′ electric |
The headline difference is weight: the Jay Flight is the heavier trailer by roughly 900 pounds dry, but it also carries close to double the fresh water capacity and significantly more cargo capacity. The Passport is lighter and slightly shorter, which matters if your tow vehicle or driveway is on the smaller side.
Towing and Tow Vehicle Fit
For a family of five, real-world loaded weight matters more than the advertised dry weight. Once you add water, propane, food, clothes, and gear for five people, the Jay Flight’s larger 2,610-lb cargo capacity gives you more room to pack without creeping toward your GVWR. The Passport’s lighter dry weight is appealing on paper, but its lower cargo capacity (about 1,457 lbs) means it fills up faster worth factoring in if you tend to overpack for family trips.
Bottom line: If you’re towing with a mid-size truck or a properly equipped half-ton, the Jay Flight’s extra capacity gives you more breathing room. If you’re towing with a lighter vehicle and traveling leaner, the Passport’s lower dry weight and shorter length make it the easier tow.
Layout and Bunkhouse Comparison
This is where the two trailers genuinely diverge, and it’s the detail most worth seeing in person before you buy.

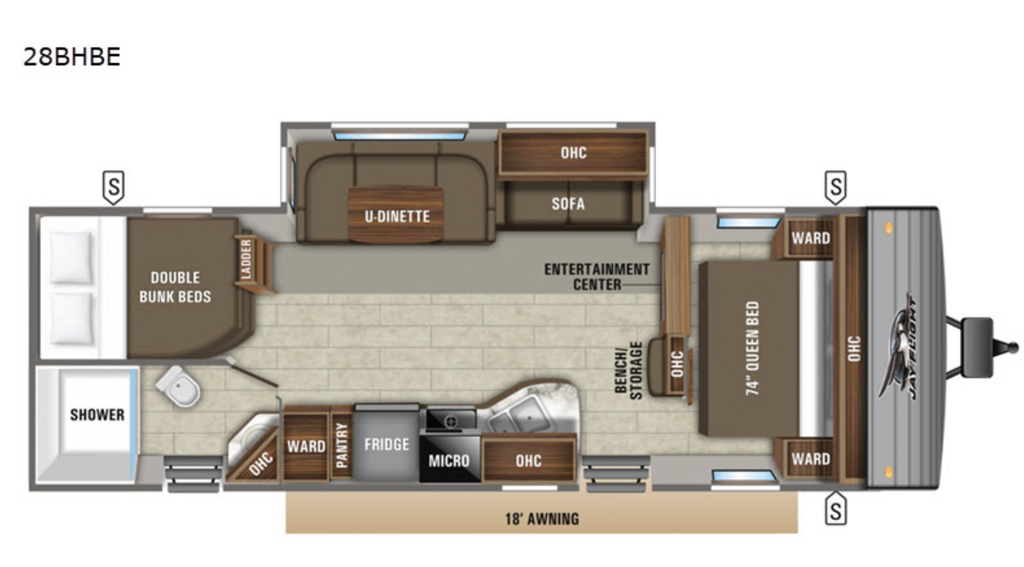

Jayco Jay Flight 28BHBE: Uses a double-over-double fixed bunk configuration in the rear, paired with a front private bedroom with a queen bed. The center kitchen and U-shaped dinette sit in the main living area, and many floor plans include a second exterior entry door near the bunk room handy for keeping muddy shoes and wet towels out of the main cabin.

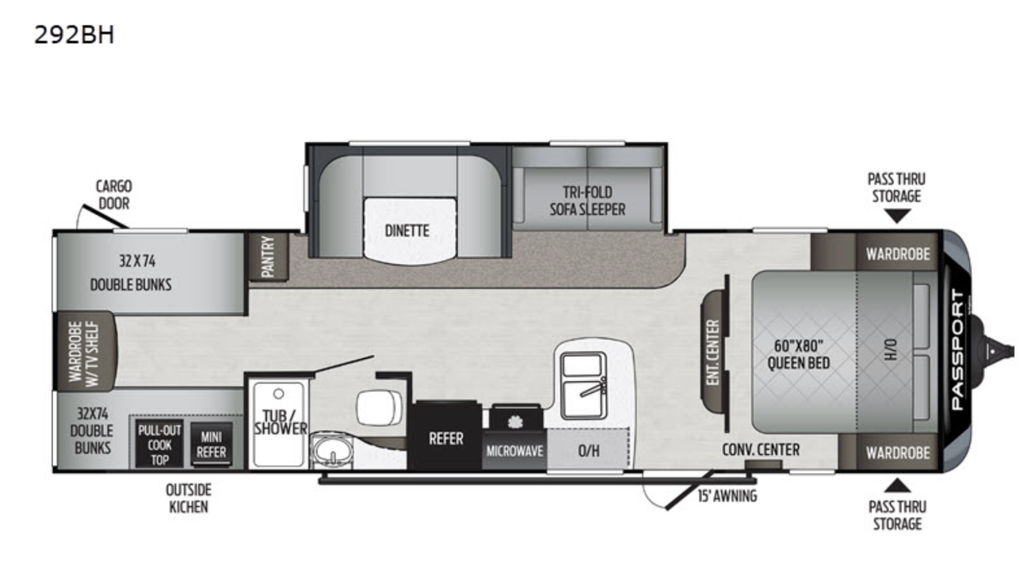

Keystone Passport 292BH: Uses a quad-bunk layout two top and two bottom bunks which effectively gives you four individual sleeping berths in the bunk room rather than two double bunks shared by kids. For a family of five with kids who don’t want to share a bunk, this is a meaningful difference. The bunk room also includes a wardrobe for clothing storage, and the front bedroom uses a space-saving sliding door instead of a swing door.
For a family of five specifically: if you have three or more kids who each want their own sleeping spot, the Passport’s quad-bunk layout is the more natural fit. If you have two kids who are fine sharing bunk space (or a mix of kids and overnight guests), the Jay Flight’s double-over-double setup works just as well and gives you more storage and tank capacity in exchange.
Storage, Tanks, and Off-Grid Comfort
The Jay Flight’s nearly double fresh water capacity (76 gallons vs. 43 gallons) and larger gray/black tanks make a real difference on multi-day trips, especially if you’re camping without full hookups. A family of five goes through water quickly between showers, dishes, and drinking water, so the Jay Flight has a clear edge for boondocking or longer stays at parks with limited hookup access.
The Passport counters with a few thoughtful storage touches the bunk room wardrobe and available outdoor kitchen options add practical, family-friendly convenience even though its raw tank numbers are smaller.
Price and Value Considerations
Both trailers sit in a similar mid-range price bracket, with the Passport often listed slightly lower due to its smaller footprint and lighter build. Used pricing on both models tends to track closely, so the deciding factor for most family buyers ends up being tow vehicle compatibility and bunk layout preference rather than price alone.
Quick Decision Guide
- Want more water capacity and cargo room for longer trips → Jay Flight 28BHBE
- Want individual bunks for each kid instead of shared doubles → Passport 292BH
- Towing with a lighter vehicle or tighter parking situation → Passport 292BH
- Towing with more truck than you need and want the extra margin → Jay Flight 28BHBE
Final Thoughts
Both the Jayco Jay Flight 28BHBE and the Keystone Passport 292BH are proven, well-built bunkhouse trailers that families rely on year after year. The Jay Flight leans into capacity more water, more cargo room, more margin for longer or off-grid trips. The Passport leans into layout efficiency individual quad bunks and a lighter, easier-to-tow package. For a family of five, the right pick comes down to whether your priority is more tank and cargo capacity for the road, or a bunk room where every kid gets their own spot.
